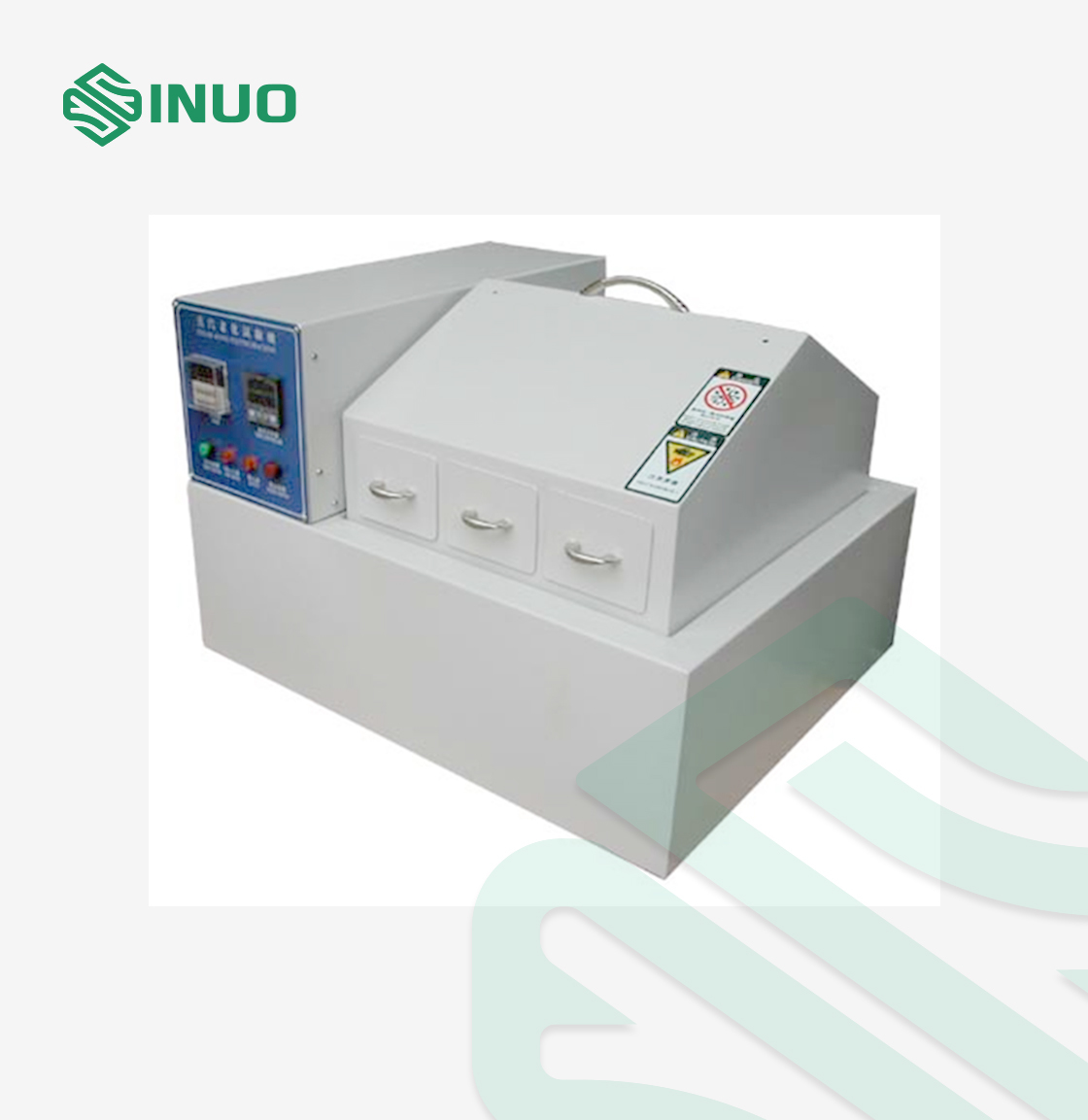

IEC 62196-1 Electric Vehicle Testing Equipment Air Saturated Test Chamber

Name: IEC 621961 Electric Vehicle Testing Equipment Air Saturated Test Chamber
Brand: Sinuo
Price: 1 USD

Quality IEC 62196-1 Electric Vehicle Testing Equipment Air Saturated Test Chamber for sale

Brand Name : Sinuo

Model Number : SNQC1016

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 20 sets/month

Delivery Time : 30 days

Packaging Details : Plywood case

Input power : AC220V±10%, 50/60Hz;

Test space : W250mm×D200mm×H200mm;

Response time : up to 99% within ≤1min;

Box material : SUB304 stainless steel.

Timer : 0.1～999.9s/m/h

Humidity indication : LCD temperature

Applied standard : IEC 62196-1:2022

Applied clause : clause 30

Contact Now

IEC 62196-1 Electric Vehicle Testing Equipment Air Saturated Test Chamber

Complied Standards & Clauses

This air-saturated test chamber is required by IEC 62196-1:2022 clause 30.

Equipment Overview

It is used to process further rusting in saturated water vapor for plugs, screws and other metal components after being soaked in ammonium chloride water.

Chamber features:
1. Adopt microcomputer temperature controller. +, M. +. Control LED digital display.
2. Adopt platinum temperature sensor (PT-100), and temperature is precisely controllable with resolution ability 0.1℃.
3. Water vapor test target can be set and controlled, steam test operation timing can be set and controlled.
4. Inner chamber stainless steel material: SUS#316 full argon welding, and outer chamber: SUS#316 material.

5. Fully automatically control.

Technical Parameters

Input power: AC220V±10%, 50/60Hz;
Test space: W250mm×D200mm×H200mm;
Test saturated water vapor temperature: (20±5)℃;
Humidity indication: LCD temperature and humidity meter displays the current ambient temperature and humidity;
Timer: 0.1～999.9s/m/h continuous timing and setting, there will be a buzzer sound when the timer reaches the set value;
Response time: up to 99% within ≤1min;
Box material: SUB304 stainless steel.
